A complete set of precision machine drill bits by FABA, designed for use with multi-spindle drilling machines in custom cabinetry and wood-based panel processing.
Bit Types:
-
Types WN-01 & WN-02 – Non-through carbide-tipped (HM) drill bits designed for professional machining of solid wood and wood-based materials such as chipboard, laminated boards, and MDF.
-
Types WN-31 & WN-32 – Solid carbide non-through drill bits with extended tool life. These bits feature a reinforced HM core that significantly increases the rigidity of the working part, resulting in stable and long-lasting performance. The optimized cutting edge geometry and high manufacturing precision ensure high processing efficiency and edge durability.

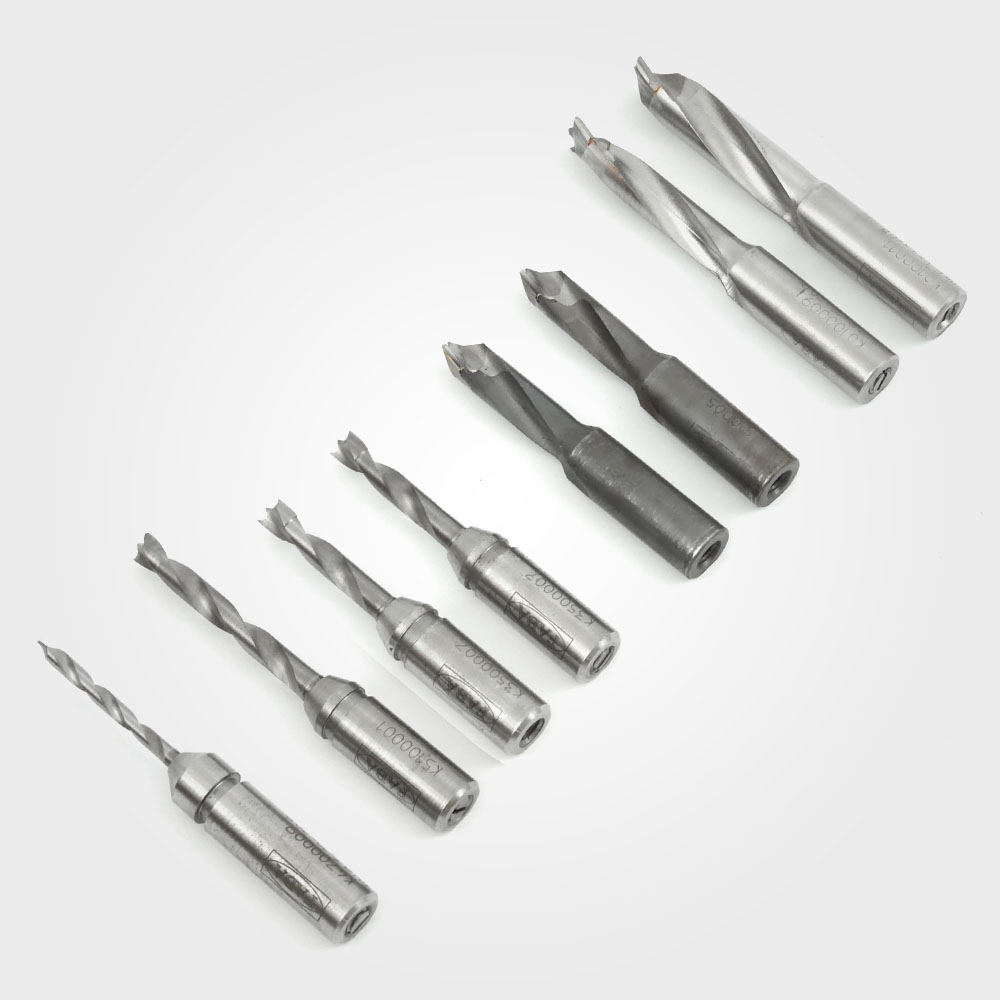

Set Includes 8 Drill Bits:
- Ø 3 mm (Type WN-31) – Overall length: 70 mm
- Ø 5 mm (Type WN-31) x2 – Overall length: 57.5 mm
- Ø 5 mm (Type WN-32) – Overall length: 70 mm
- Ø 8 mm (Type WN-02) x2 – Overall length: 57.5 mm
- Ø 8 mm (Type WN-02) – Overall length: 70 mm
- Ø 10 mm (Type WN-02) – Overall length: 70 mm
Technical Specifications:
- Shank diameter: 10 mm
- Rotation direction: Clockwise (“P”)
- Suitable for: Multi-spindle drilling machines
